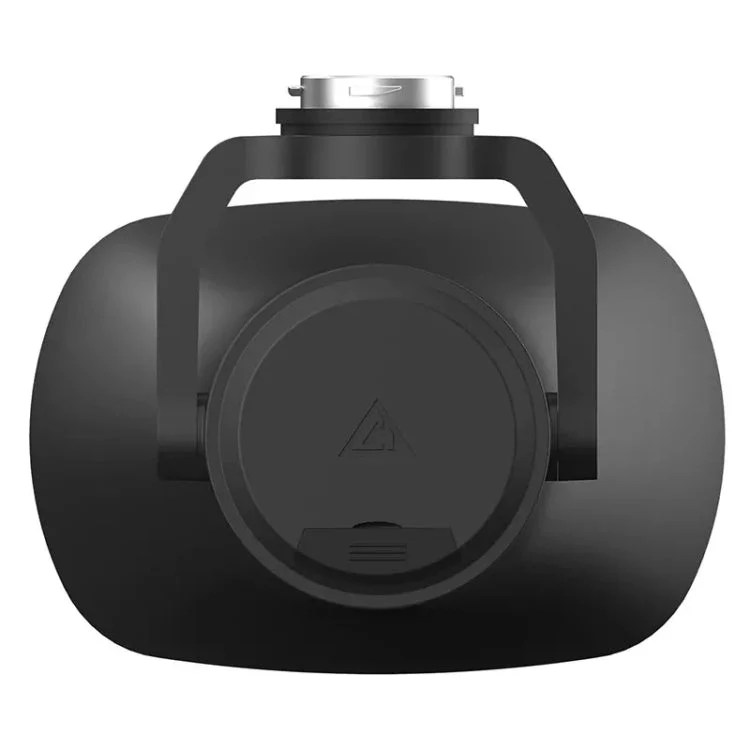

CZI MP130 V2 Digital Voice Broadcasting System: Project Your Voice Up to 500 Meters

The CZI MP130 V2 is a long-range acoustic device (LRAD) designed for UAVs, offering high sound pressure to clearly transmit voice over distances up to 500 meters. This second-generation digital voice broadcasting system seamlessly integrates with DJI platforms for reliable communication.

Key Features:

• Long-Range Communication: Effectively project voice messages up to 500 meters.
• Crystal-Clear Audio: High sound pressure ensures clear and intelligible voice transmission, even at long distances.

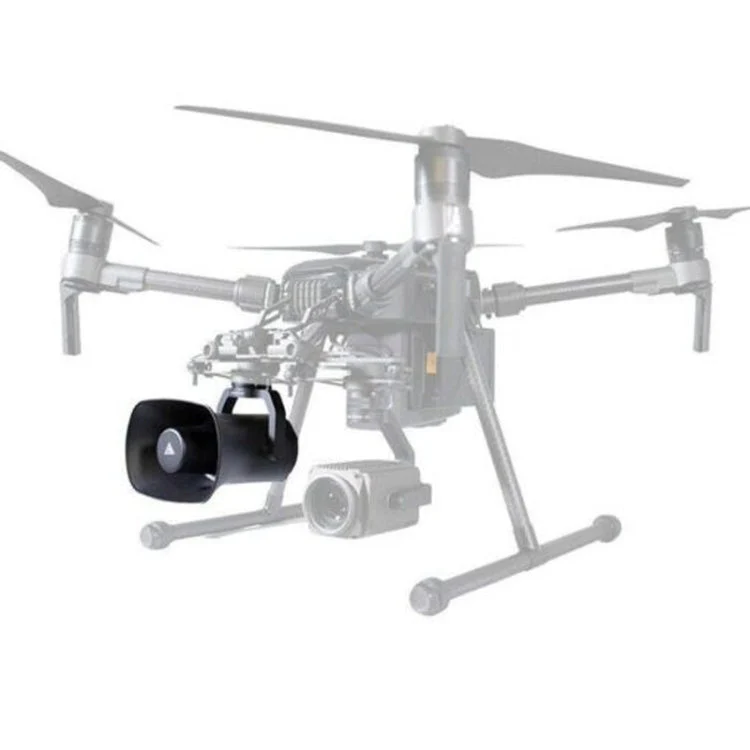

• Seamless DJI Integration: Connects via DJI PSDK and SkyPort V2.0 for reliable and convenient operation with compatible DJI drones (M200 V2/M300 series).
• Versatile Broadcasting Modes: Supports real-time shouting, recorded audio upload, text-to-speech, SD card playback, and mixed playback options.
• Compact and Lightweight: Small and lightweight design minimizes impact on drone performance.
• Low Power Consumption: Efficient design extends operation time.
• Excellent Magnetic Shielding: Minimizes interference with drone systems.
• Adjustable Pitch Angle: Offers adjustable pitch angle (0-60 degrees) for precise sound projection (supported by M350, M300, and M200 V2).

Specifications:

• Dimensions: 140 x 140 x 125mm (L x W x H)
• Weight: 570g ± 5g
• Power: 25W
• Maximum Sound Pressure: 124dB at 1m
• Effective Broadcast Distance: 500m
• Directivity: 80° x 50° (horizontal x vertical)
• Operating Temperature: -10°C to +40°C
• Load Interface: DJI SkyPort
• Communication Link: DJI UAV Link
• Pitch Angle Adjustment: 0-60° (M350, M300, M200 V2)
• Audio Formats: MP3, WAV, M4A, FLAC, AAC
• App Support: Android 5.0 and above

Applications:

• Public safety announcements
• Search and rescue operations
• Crowd control
• Emergency response
• Inspections and surveys
